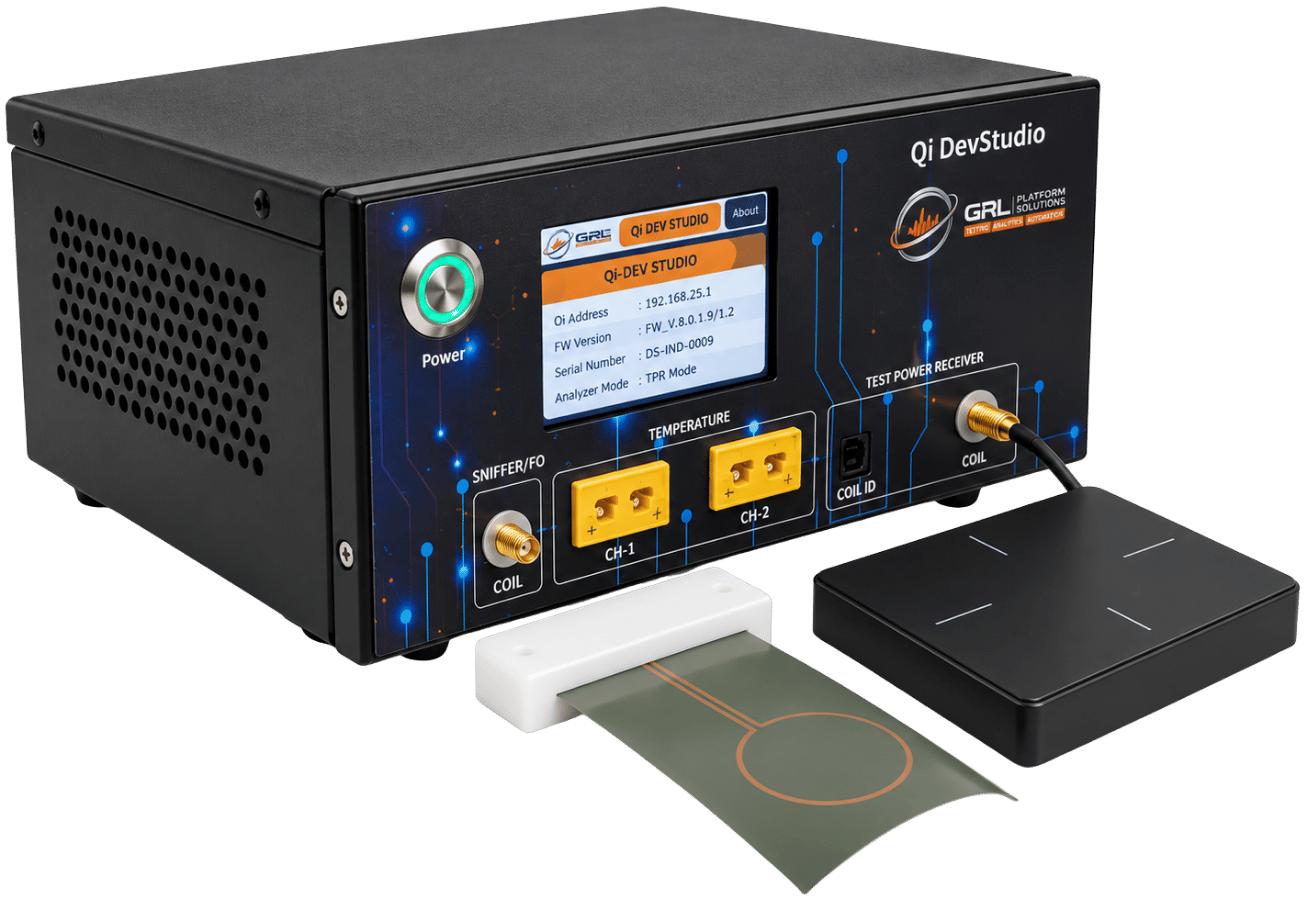

Qi Development, Debug and Validation Platform (Qi DevStudio)

The Qi DevStudio is a comprehensive development, debug, and validation platform designed for Qi Power Transmitter (PTx) development teams. The platform combines three powerful test solutions into a single hardware platform and software application, enabling engineers to analyze, validate, debug, and optimize wireless power systems throughout the product development lifecycle.

Qi Sniffer

Capture and decode all Qi communication packets across BPP, EPP, and MPP15, MPP25 power profiles using an ultra-thin, low-loss non-intrusive probe placed between the charger (PTx) and mobile phone (PRx).  The sensing probe operates non-intrusively, enabling complete packet analysis, protocol debugging, charging insight visualization, and interoperability investigation without impacting charging performance.

Exerciser / PRx Emulator

Operate as a fully controllable Reference Power Receiver (TPR) for exercising and validating Qi Chargers (PTx). Configure ASK modulation depths, dynamic load profiles, programmable packet sequences, and custom packet payloads to verify transmitter operation across BPP, EPP, and MPP power profiles under both normal and fault conditions.

Synthetic FO

Perform advanced Foreign Object Detection (FOD) validation using synthetic Foreign Object with programmable power loss instead of physical foreign objects. Synthetic FO testing provides repeatable, controlled, and safe foreign-object emulation, simplifying FOD characterization, debugging, and compliance validation.

Key Features

• Supports Qi v2.3.1 and earlier Qi specifications.
• Supports BPP, EPP, and MPP15, MPP25 power profiles.
• Non-intrusive capture of ASK and FSK communication.
• Real-time packet decoding with detailed protocol insights.
• Charging analysis with Received Power (RP) and power-transfer visualization.
• Fully programmable receiver emulation and packet sequencing.
• Protocol fault injection and interoperability testing.
• Synthetic Foreign Object Detection validation without physical objects.
• Reporting support for Excel, PDF, HTML, and JSON formats.
• Automation support through C# and Python APIs.
• Dual temperature monitoring with support for two independent temperature sensors for thermal validation, FOD characterization, and real-time system monitoring.

• Qi-DevStudio-ALL - Qi DevStudio tester hardware and Qi DevStudio software (Sniffer, Exerciser, FO Panel)
• Qi-SNIFF - Sniffer Probe & Software Option for Sniffing Feature
• Qi-RPTR - TPR Coils (BPP, EPP, MPP) and Software Option for Exerciser
• Qi-SFO - Sniffer Probe & Software Option for Synthetic FO Emulation

Purchase the Qi DevStudio or request a personalized demo to witness how the solution can be tested on your product prototypes.
