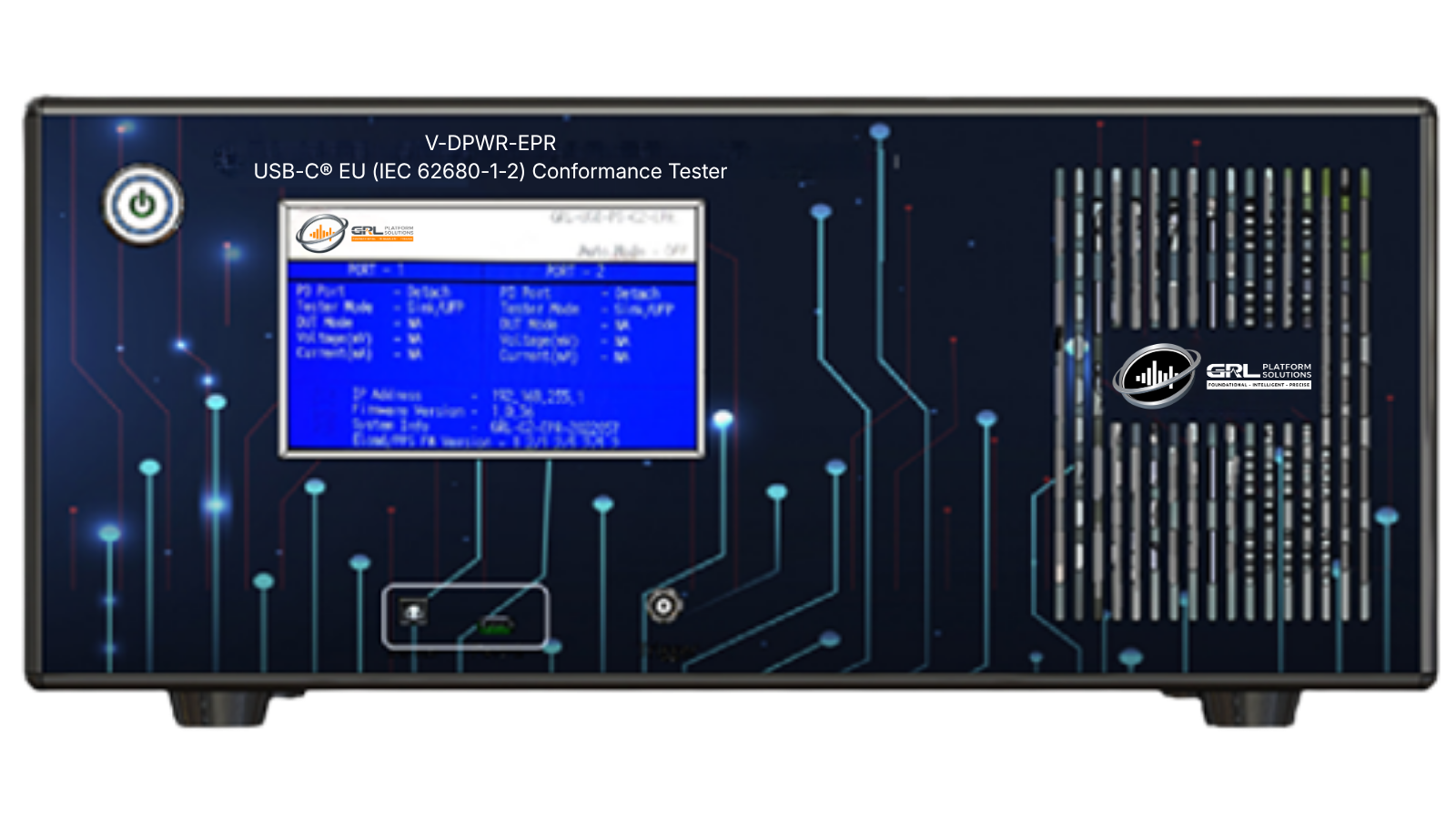

The V-DPWR-EPR is a USB Power Delivery (PD) Source, Sink, DRP and Cable DUT tester that supports 240W of power. It supports the latest USB PD 3.2 specification with AVS and is backwards compatible with USB PD 2.0 specification. Supports the EU conformity testing (IEC 62680-1-2) and USB PD functionality verification testing.
Supports USB data loopback testing by emulating the tester as a USB 3.2 Gen 1 (5 Gbps) device.
Key Features
USB PD Source, Sink and DRP Tester in a desk friendly form factor
Supports USB PD 2.0 & PD 3.2 PPS, AVS, negotiation with USB 2.0 & USB 3.2 Gen 1 (5Gbs) data loopback test in device mode
Supports USB-PD Functionality Verification Test Cases (Free of charge) and IEC 62368-1 Functional Safety Testing (Option)
The only customized solution for IEC 62680-1-2 for the EU Conformity testing
Capable of supporting up to 240W continuous and 7.5W VCONN Power as Source, and Sink
Voltage sense line available to compensate/reduce impact of IR drop
Open API allows hardware control from customer’s existing software
GRL Platform Solutions production and validation software to support production floor testing
Supports USB Type-C® and Type-A ports for power testing
Targeted for design debug, high volume production and reliability testing of USB Type-C® DRP Designs including PD hosts, hub modules, docks, monitors, chargers and power banks
V-DPWR-EPR is intended solely for EU (IEC 62680-1-2) conformity assessment testing. It does not provide complete USB-IF compliance testing and cannot be used to claim USB-IF’s EU Conformity and/or full certification. For USB-IF’s EU conformity or full certification, use the USB-IF-approved GRL-C2-EPR and complete the applicable USB-IF program requirements to receive formal notification from USB-IF.
Options & Accessories
V-DPWR-EPR - Tester and USB PD Studio Software V-DPWR-IEC - IEC 62680-1-2 and IEC 62368-1 Conformance Testing V-DPWR-Safety - IEC 62368-1 Conformance Testing
Download & Purchase
Purchase the V-DPWR-EPR orrequest a personalized demo to witness how the solution can be tested on your product prototypes.
